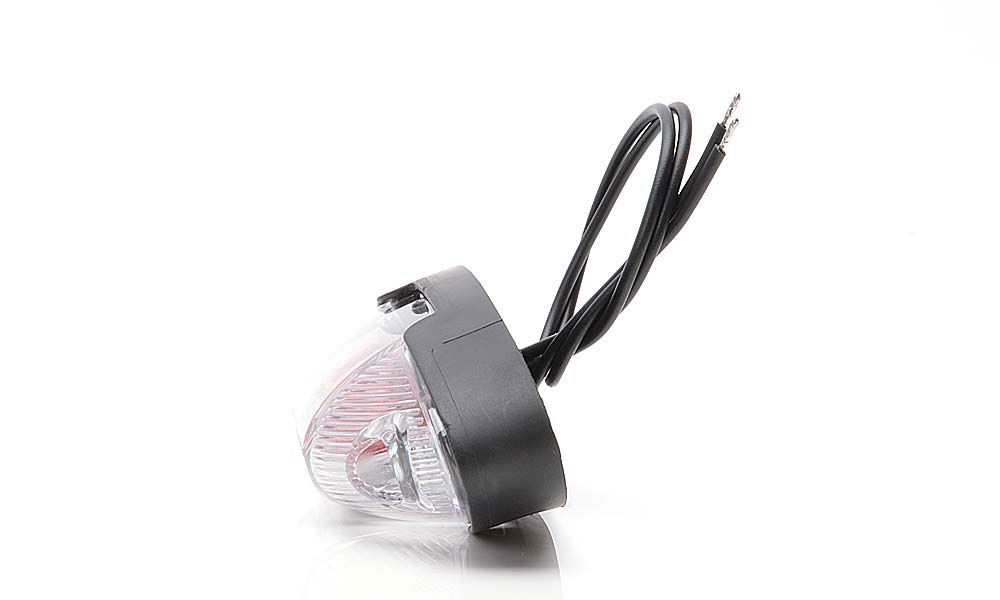

Based on modern LED technologies, a new family of positional anterior-posterior and anterior-posterior-lateral composite lamps was arised , with a subtle aesthetic appearance and streamlined design.
Lamps are present in several versions, depending on the number of the LEDs.
- W104 – positional anterior-posterior-lateral lamp assembly , 3LED + 3LED+ 3LED
- W105 – positional anterioposterior lamp assembly, 3LED + 3LED
- W106 – positional anterior-posterior-lateral lamp assembly, 1LED +1LED +3LED
- W107 - positional anterioposterior lamp assembly, 1LED+ 1LED
In the interest of customer needs lamps are designed completely maintenance free and easy to install.
It is possible to mount these lamps in one of the three variants:
variant 1 – housing without the hinge (direct mounting on a vehicle)
variant 2 – housing with flat hinge (the possibility of suspending the lamp on the edge of the vehicle)
variant 3 – housing with angled hinge (the possibility of suspending the lamp under broadside of the vehicle)
Additional features and parameters:
- Modern design
- Lampshades in the lamps made of plastic more resistant to mechanical damage
- No polarity in the lamps
- Protection against power surges that may occur in the vehicle installation
- Universal operating voltage – lamps operating range is a voltage of about 10V-32V
- The electronic circuitry in the lamp can operate at a temperature from -40 oC to +60 oC
- The body in the lamps made of impact resistant plastic, even under extreme conditions (from -50oC to +80oC),
- Lifetime of the LEDs approximately amounts to 50 000 hours of continuous operation.
- Power efficiency – consumption of electricity is very low and depending on the type of lamp amounts to:
-- from 0.6 W to 1.3 W in the W104 lamp
-- from 0.3 W to 0.7 W in the W105 lamp
-- from 0,6W to 1,1W in the W106 lamp
-- from 0,2W to 0,4W in the W107 lamp
- Polish product, designed and produced in the Company WAŚ
- Hermeticity-class tightness IP66/IP68
