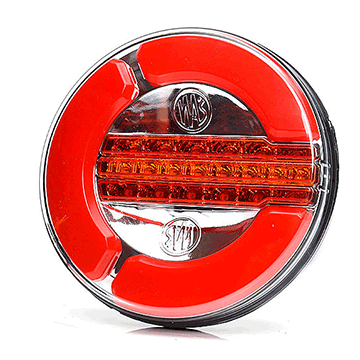

W153 is a wholly-diode rear cluster light with: position, stop and indicator light enclosed in a wheel-shaped casing with a diameter of 142mm. The universal construction of the light allows its assembly on both the left and right side of a vehicle and the homologation allows also for its assembly with a vertical indicator light. The position light is made of a special material which generates a pleasant-to-the-eye light glow with a neon-like effect. Additionally, the modules are placed in such a way as to give the light its characteristic shape.
The W153 light is also available with a dynamic indicator - W 153DD version. This means that the diodes of the indicator come on one after the other, from the inside to the outside of the vehicle and the time of the whole line coming on is 200ms (0.2s). This model also allows for assembly of the light on any side of the vehicle, provided the indicator light runs from the inside to the outside of the car. Moreover, the W153DD light in a 24V installation operates in line with the ISO 13207 standard’s requirements.
The shade and the casing of the light are made of high quality plastic resistant to temperature and UV radiation. Additionally, it has electromagnetic compatibility and a protection rating IP 66/68. As standard, W 153 series lights are available in two models of assembly in a vehicle: with the use of an ordinary cable or with the use of a 5-pin WAS adapter.
W153 and W153DD series lights are often combined with a complimentary W154 type light with a reversing light, rear fog light and rear position light. Additionally, the W 153 with a static indicator has a D approval which allows two W 153 lights to be positioned next to each other.
Power consumption at 12V operating voltage:
- direction indicator light - (W153) 8xLED 3W | (W153DD) 8xLED 6W
- position light - 12xLED 1,2W
- stop light - 12xLED 1,2W
Power consumption at 24V operating voltage:
- direction indicator light - (W153) 8xLED 6W | (W153DD) 8xLED 6W
- position light - 12xLED 2,4W
- stop light - 12xLED 2,4W
Cable: 200cm YLY-S 4x0,5mm2
335.1129DD - LED REAR COMBINATION Light with DYNAMIC INDICATOR (Fly Lead) 12/24V
